WO2024200592 - TORSION SPRING TENSIONING TOOL

National phase entry is expected:
Publication Number WO/2024/200592
Publication Date 03.10.2024
International Application No. PCT/EP2024/058388
International Filing Date 27.03.2024
Title [English] TORSION SPRING TENSIONING TOOL [French] OUTIL DE TENSION DE RESSORT DE TORSION
Applicants ** ASSA ABLOY ENTRANCE SYSTEMS AB Box 131 261 22 LANDSKRONA, SE
Inventors ** WENSING, Paul Laan '40-'45 29 3931 CR Woudenberg, NL VAN DEN HAZEL, Bert Potgieterstraat 37 3881 WL Putten, NL BOETERS, Toby Schone van Boskoopgaarde 19 3824 AD Amersfoort, NL
Priority Data 2330140-1  28.03.2023  SE

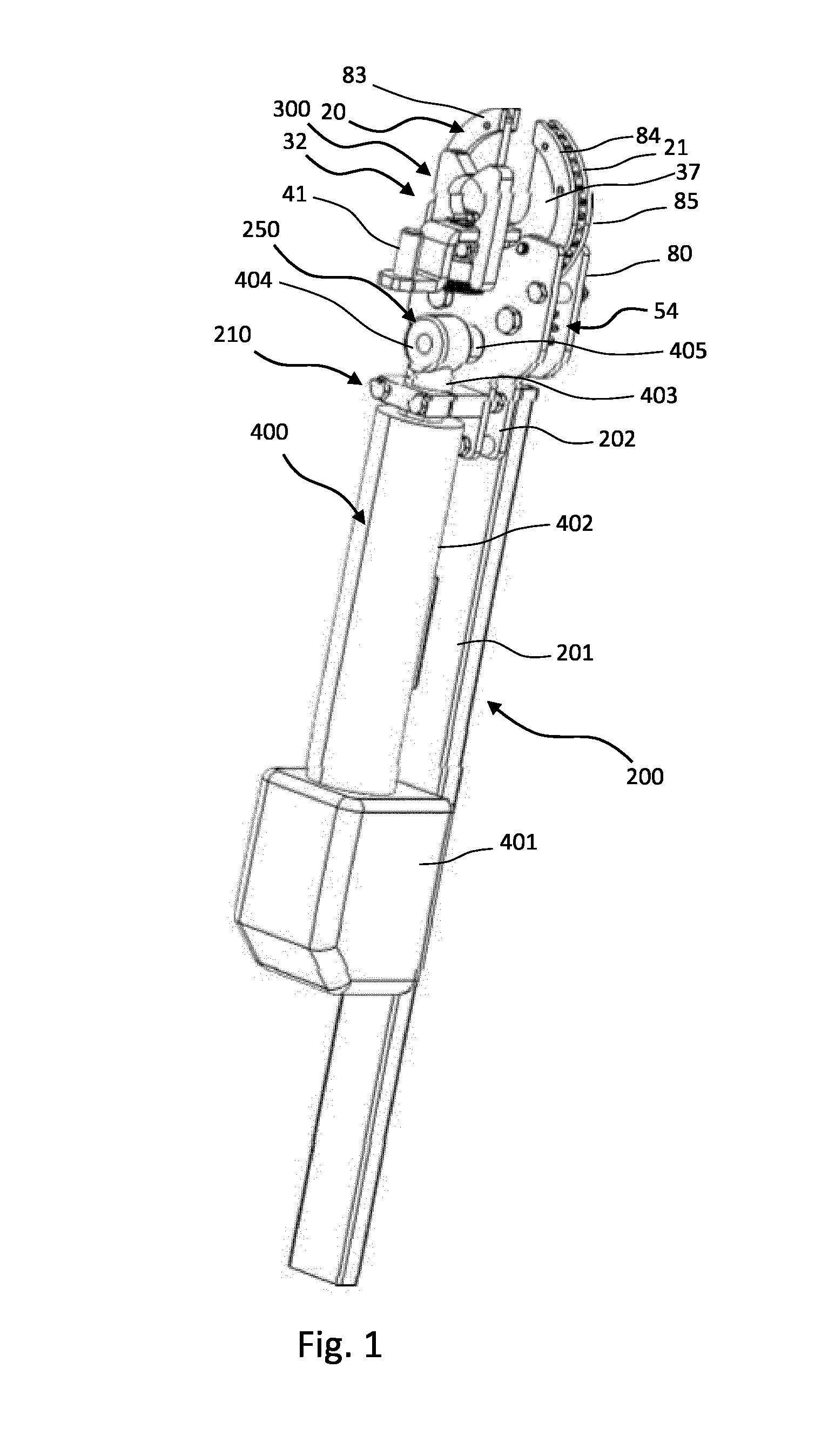

front page image
Application details
International Searching Authority
Translation

Recalculate

* The data is based on automatic recognition. Please verify and amend if necessary.

** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.

Quotation for National Phase entry

Country Stages Total
China Filing 1282
EPO Filing, Examination 5817
Japan Filing 570
South Korea Filing 578
USA Filing, Examination 2635
MasterCard Visa
Total: 10882
Abstract [English] ASSA ABLOY Entrance Systems AB has developed Torsion spring tensioning tool (100) for tensioning a torsion spring of a counterbalancing mechanism of an overhead door, wherein the torsion spring tensioning tool (100) comprises a housing (80), a gear wheel arrangement (20) adapted to be mounted on a shaft (1001) of the counterbalancing mechanism, said gear wheel arrangement (20) comprising a gear wheel (21) rotatably arranged in the housing (80), the torsion spring tensioning tool (100) further comprising a gear mechanism (54) coupled to the gear wheel (21) for rotating said gear wheel (21). The torsion spring tensioning tool (100) further comprising one or more mounting member (97) for arranging the gear wheel (21) relative the housing (80). [French] ASSA ABLOY Entrance Systems AB a élaboré un outil de tension de ressort de torsion (100) destiné à tendre un ressort de torsion d'un mécanisme d'équilibrage d'une porte basculante, l'outil de tension de ressort de torsion (100) comprenant un logement (80), un agencement de roue d'engrenage (20) conçu pour être monté sur un arbre (1001) du mécanisme d'équilibrage, ledit agencement de roue d'engrenage (20) comprenant une roue d'engrenage (21) agencée en rotation dans le logement (80), l'outil de tension de ressort de torsion (100) comprenant en outre un mécanisme d'engrenage (54) couplé à la roue d'engrenage (21) pour faire tourner ladite roue d'engrenage (21). L'outil de tension de ressort de torsion (100) comprend en outre un ou plusieurs éléments de montage (97) pour agencer la roue d'engrenage (21) par rapport au logement (80).
